Klein.

Compact.

Powerful.

about the PMK DN10 series

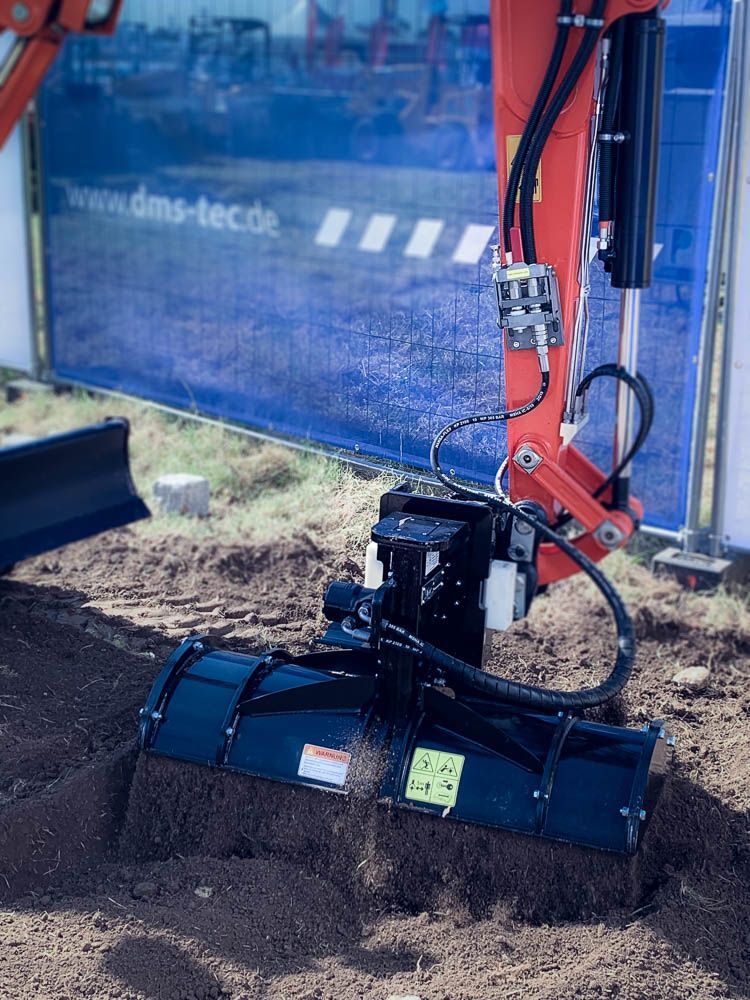

Designed for the smallest machines from 0.8 - 2.5 t to change attachments quickly and easily. Even on the smallest machines, attachments equipped with flat face couplings can no longer be coupled by hand under residual pressure.

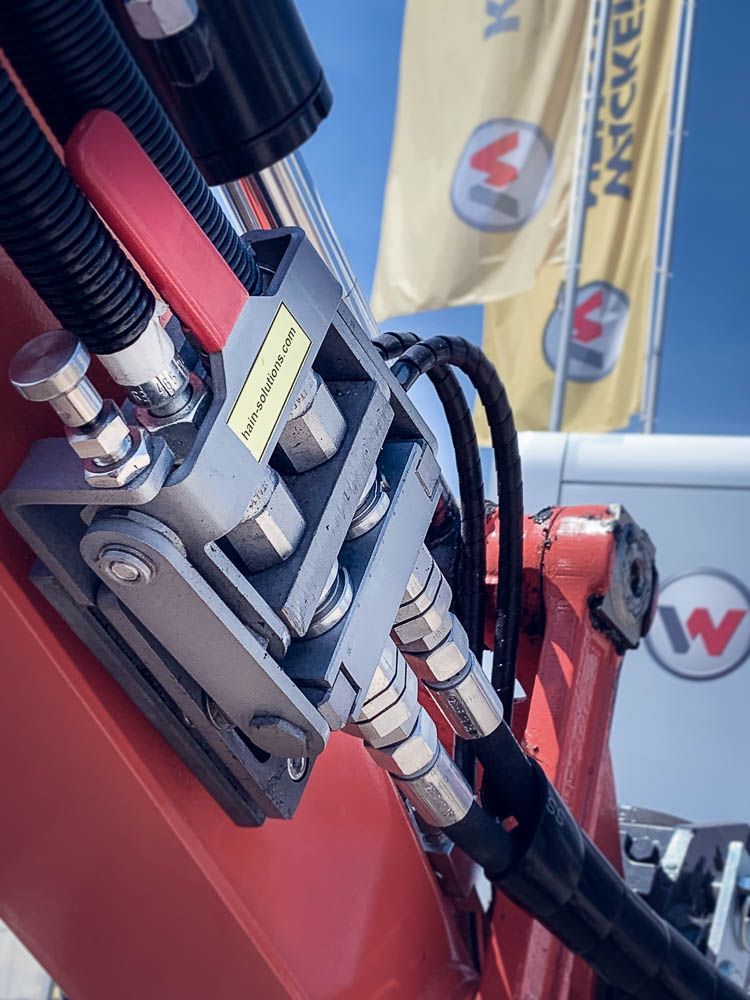

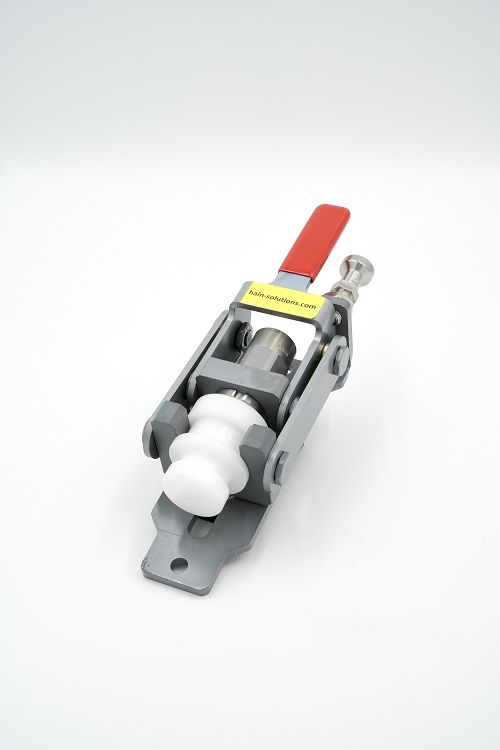

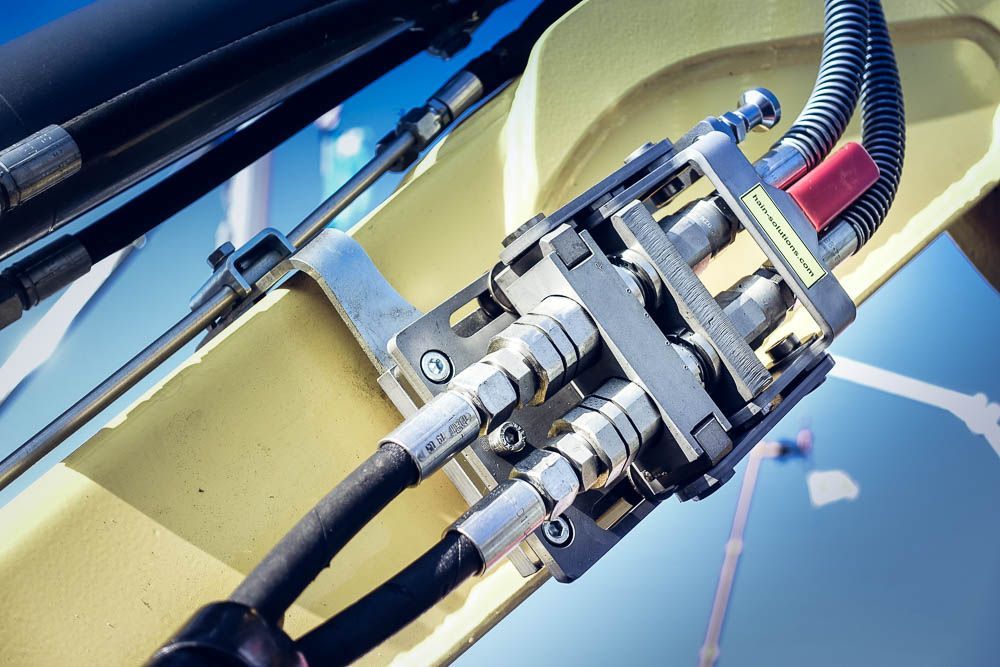

This Pister multi-coupling is characterized by 330 bar operating pressure with 4-fold safety and flow rates of up to 75 l/min. at 5 bar dynamic pressure. The couplings have 3/8" BSP connections, are hammer-proof and can be replaced individually.

Depending on the number of additional circuits, the systems are available as a 1- or 2-system.

The various multi-coupling systems of size DN10
